XFGC型充气挂槽浮选机用于搅拌、擦洗、分离和精选少量矿样等。设计中空轴具有充气量大，中心充气，变频器无级调速，浮选速度快，选别指标好等特点。
XFGC Model Aeration Hanging Cell Flotation Machine is used for agitation , separation, scrubbing and cleaning of minor samples. The axial structure in the design features large capacity of aeration, central aeration, stepless speed governing of inverter, rapid speed of flotation, desirable separation indexes and others.

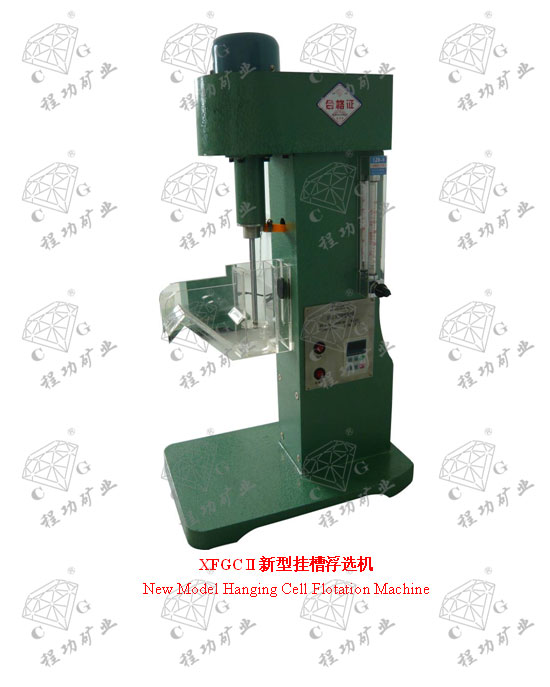

XFGCⅡ新型充气挂槽浮选机是XFGC型充气挂槽浮选机更新换代产品它它采用变频技术，叶轮无级调速，数字显示，调整精确，运转可靠。XFGCⅡ型充气挂槽浮选机采用外充气装置，充气可调、准确稳定。
New model XFGCⅡAeration Hanging Cell Flotation Machine is a updated product of XFGC Aeration Hanging Cell Flotation Machine, adopting frequency conversion technology, stepless speed governing of impeller digital display with accurate adjustment and reliable operation. XFGCⅡ Model Aeration Hanging Cell Flotation Machine uses the external aeration device with adjustment of aeration, accuracy and reliability.
| 型号规格 Model |
容量 Capa. |
选槽容积 Volume |
叶轮直径 Impeller diameter |
叶轮转速 Impeller speed |
给矿粒度 Particle Size |
功率 motor Power |
质量 Weight |
|---|---|---|---|---|---|---|---|
| g | L | mm | r/min | mm | w | kg | |
| XFGCⅡ 5 |
5、15 25、35 |
20、60 100、140 |
Φ18、Φ24、Φ28 | ≤2600 | ≤0.2 | 90 | 25 |
| XFGCⅡ 50 |
50、100 | 200、400 | Φ34、Φ36 | ≤2600 | ≤0.2 | 90 | 30 |
