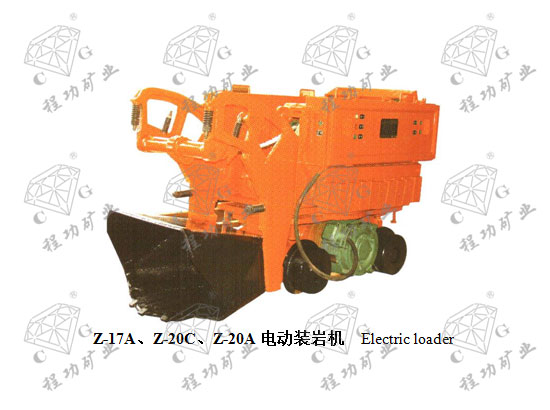

Z型电动装岩机 Electric loader
其用途主要是在矿井内，将放炮崩落下来的岩石或矿石装入矿车，实现装载工作机械化，提高劳动生产率。
娱乐中心It is mainly used in mines to load the rocks or ores from blast firing into mine cars, to realize mechanization of loading and improve labor productivity.
娱乐中心本机器作防爆型与非防爆型，根据用户对卸料高度的不同要求又各有加高型和普通型，其型号分别为普通型华-1、Z-17，加高型Z-17A，Z-20C， Z-20CA。
娱乐中心There are different types of such machines: explosion proof type and non explosion-proof type. According to users’ different requirements for dumping height, there are also heightened type and ordinary type. The models are respectively ordinary type -1, Z-17, as well as heightened type Z-17A, Z-20C, and Z-20CA.
| 型号规格Model | 华-1 | Z-17 | Z-17A | Z-20C | Z-20CA | |
| 装载能力Capacity | m3/h | 30 | 30 | 30 | 40 | 40 |
| 铲料容积Volume | m | 0.17 | 0.17 | 0.17 | 0.20 | 0.20 |
| 装载宽度 | m | 1.7 | 1.7 | 1.7 | 1.9 | 1.9 |
| 行走速度Speed | m/s | 1 | 1 | 1 | 1 | 1 |
| 轨距（1） | mm | 600 | 600 | 600 | 600 | 600 |
| 功率 Power | kw | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| 电动机台数 | 2 | 2 | 2 | 2 | 2 | |
| 卸载高度 Dumping height |
mm | 1010 | 1010 | 1210 | 1250 | 1330 |
| 卸载距离 | mm | 300 | 300 | 300 | 350 | 350 |
| 外型尺寸 Outside dimension |
mm | 2175×1070 ×1750 |
2175
×1070 ×1750 |
2175
×1070 ×1860 |
2117
×1070 ×1940 |
2117
×1070 ×2120 |
| 重量 Weight | kg | 3350-3400 | 3350-3400 | 3350-3400 | 3500 | 3700 |
