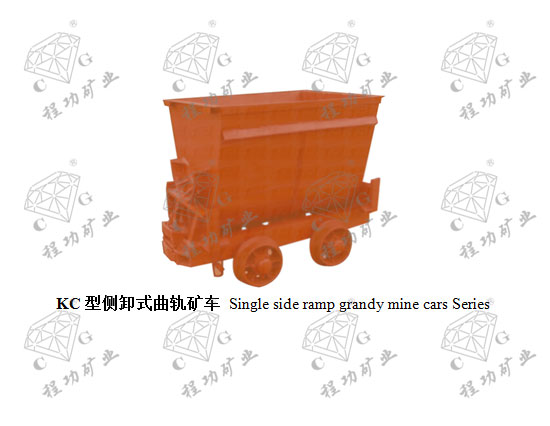

娱乐中心KC型侧卸式曲轨矿车 Single side ramp grandy mine cars
娱乐中心国家行业标准JB/T9025
本矿车用于井下及地面运输各种矿石、煤炭、建筑材料等。用机车牵引、在卸料点设置卸矿曲轨，能自动卸料。
Such mine cars are used in the pit or on the ground to transport various ores, coal, building materials, etc. They are led by locomotives, set ore unloading bent at the emptying point, and can unload materials automatically.
| 型号 规格Model | 容积Volume | 装载量Loading weight | 轨距Track base | 卸载 角度Unloading angle | 牵引 高度Dragging hight | 牵引力Dragging force | 质量Weight |
| m3 | t | mm | （°） | mm | KN | t | |
| KC0.7-6 | 0.7 | 1.77 | 600 | 40 | 320 | 60 | 0.63 |
| KC1.2-6 | 1.2 | 3 | 600 | 42 | 320 | 60 | 1.03 |
| KC1.6-6 | 1.6 | 4 | 600 | 42 | 320 | 60 | 1.36 |
| KC2-6 | 2 | 5 | 600 | 42 | 320 | 60 | 1.9 |
| KC2-7 | 2 | 5 | 762 | 42 | 320 | 60 | 2 |
| KC2.5-6 | 2.5 | 6.25 | 600 | 42 | 320 | 60 | 2 |
| KC2.5-7 | 2.5 | 6.25 | 762 | 42 | 320 | 60 | 2.1 |
| KC4-7 | 4 | 10 | 762 | 42 | 430 | 60 | 3.2 |
| KC4-9 | 4 | 10 | 900 | 42 | 430 | 60 | 3.3 |
| YCC0.7-6 | 0.7 | 0.75 | 600 | 40 | 320 | 60 | 0.75 |
| YCC1-6 | 1 | 2.5 | 600 | 45 | 320 | 60 | 0.99 |
| YCC1.6-6 | 1.6 | 4 | 600 | 42 | 320 | 60 | 1.45 |
| YCC2A-6 | 2 | 5 | 600 | 45 | 320 | 60 | 2.1 |
| YCC2.5-6 | 2.5 | 6.4 | 600 | 45 | 320 | 60 | 2.45 |
| YCC4-9 | 4 | 10 | 900 | 42 | 320 | 60 | 3.3 |
| YCC6-7 | 6 | 15 | 762 | 45 | 320 | 60 | 6.5 |
