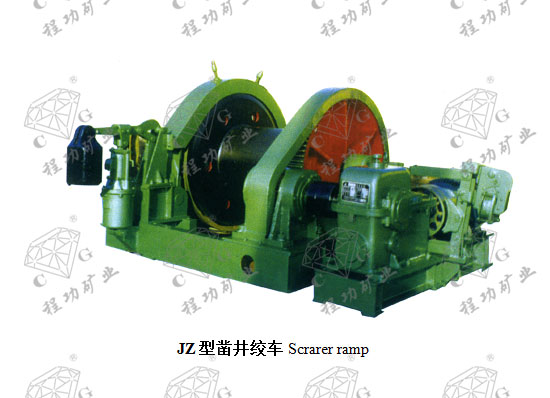

JZ型凿井绞车Scrarer ramp series
娱乐中心JZ系列凿井绞车主要用于煤矿及非金属矿凿井时悬吊设备的绞车。
JZ scraper ramp series are winches mainly used to suspend equipment during the drilling of coal mines and nonmetallic mines.
| 型号规格 Model | 钢丝绳 Rope | 钢绳速度m/s | 容绳量 Diameter | 功率Power | 重量 weight | ||||
| 工作方式 | 绳数根 | 拉力 | 直径 Duaneter | 快 | 慢 | ||||
| kg | mm | m | kw | kg | |||||
| JZ-10/600A | 缠绕式 | 1 | 10000 | 31 | 6 | 3 | 600 | 22 | 6160 |
| 2JZ-10/600A | 缠绕式 | 2 | 2×10000 | 31 | 6 | 3 | 600 | 40 | 11250 |
| JZ-16/800A | 缠绕式 | 1 | 16000 | 40.5 | 6 | 3 | 800 | 28 | 11500 |
| 2JZ-16/800A | 缠绕式 | 2 | 16000 | 40.5 | 6 | 3 | 800 | 55 | 21500 |
| JXM-25/800A | 磨擦式 | 1 | 25000 | 52 | 6 | 3 | 800 | 55 | 18650 |
| 2JZM-25/800A | 磨擦式 | 2 | 25000 | 52 | 3 | 800 | 75 | 37000 | |
| 2JZM-25/1350 | 磨擦式 | 2 | 25000 | 52 | 3 | 1350 | 75 | 39210 | |
| JZM-40/1350 | 磨擦式 | 1 | 40000 | 60.5 | 3 | 1350 | 80 | 37000 | |
