·YA、YK型圆振动筛 Circular vibrating screen

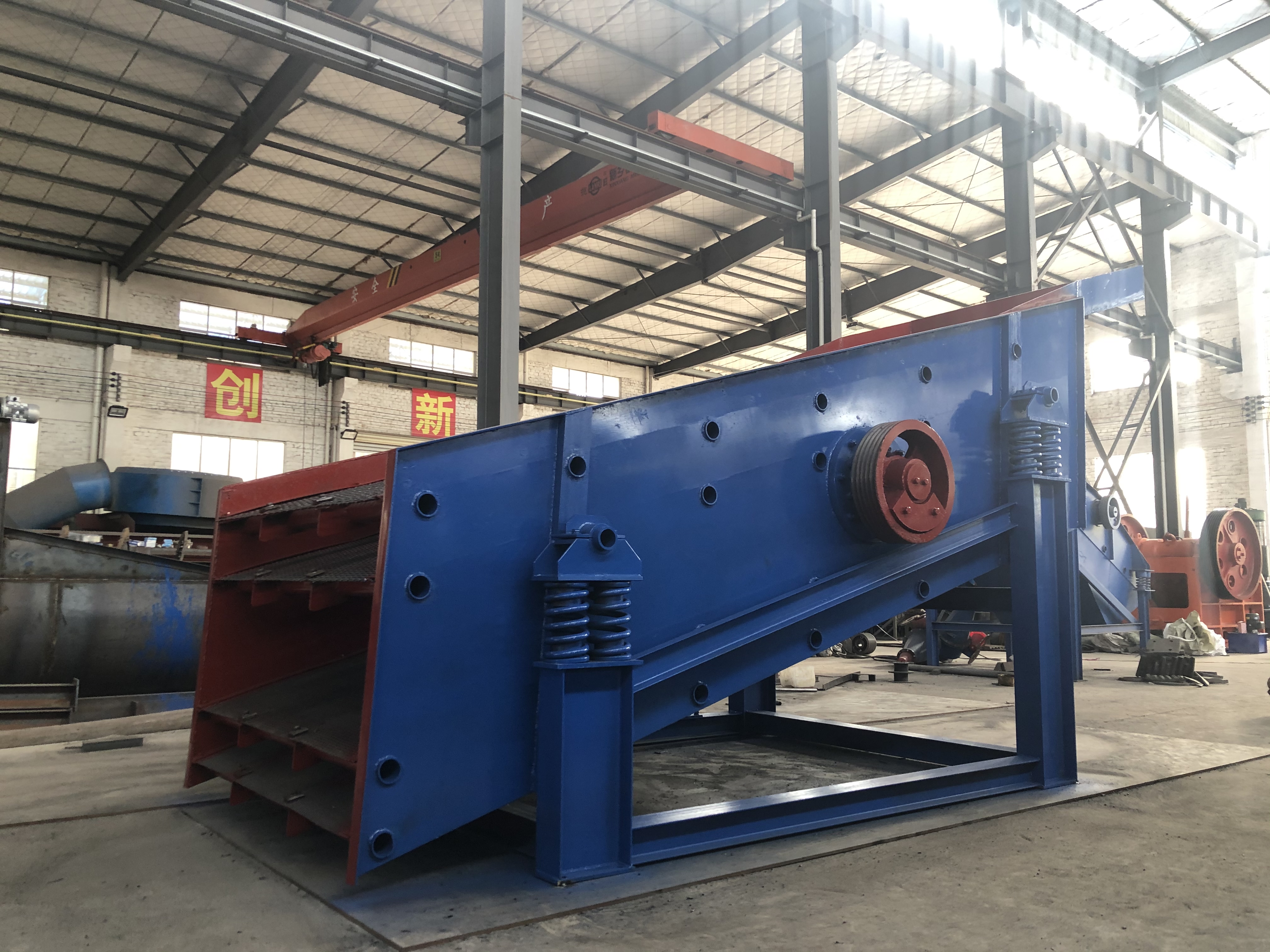

YA、YK型圆振动筛

YA、YK型圆振动筛 Circular vibrating screen

一、用途

YA型圆振动筛主要适用于煤炭、冶金、矿山、发电、建材工业、水利工程、轻工和化工等行业。对煤、矿石、焦炭等散状物料分级的一种高效率筛分机械。

二、工作原理与结构特征

该振动筛的运动由电机通过三角胶带驱动具有偏心质量的振动器,而使筛箱产生振动,筛箱的运动轨迹为圆形。

该振动筛由筛箱、振动器、弹簧减振装置和支承底架等组成。筛箱采用先进的环槽铆钉联接,组成框架式结构。振动器采用偏心轴加偏心块式。弹簧减振装置采用钢制螺旋弹簧。


1.Use

YA Drum Vibrating Screen is  primarily applied in coal, metallurgical, power generation, building material,  water conservancy, light and chemical industries and other industries and a  highly efficient screening machine to classify coal, ore, coke and other bulk  materials.

娱乐中心2.Working Philosophy and Structural  Property

The screen is operated by  electric motor to drive vibrator with eccentric mass via delta belt, allowing  screen box to vibrate, with the motional orbit of the screen box being  circular.

The screen is composed of  screen box, vibrator, spring damping device, supporting underframe and others,  as shown in Fig.1. The screen box uses the advanced ring groove rivet for  connection and is of frame structure.

The vibrator adopts eccentric  shaft and eccentric block and the spring damping device uses steel spiral  spring.

型号规格 Model筛网 Screen给料粒度 Feed Size生产能力Capacity振动频率 Frequ-ency功率Power重量Weight
层数面积Area筛孔尺寸 Opening Size

m2mmmmt/hv.p.mkwkg
YA型圆振动筛 Circular vibrating screen
YA184817.56-50≤200150-525845156289
2YA184827.56-50≤200150-525845156945
YAH184817.530-150≤50250-1000755137122
2YAH184827.530-150≤400250-1000755157740
YA21481106-50≤210180-63074818.59287
2YA21482106-50≤210180-6307482210532
YAH214811013-200≤400270-120070818.510430
2YAH214821030-150≤400270-12007082211190
YA21601123-80≤200230-80074818.59926
2YA21602-126-50 ≤200230-8007482211249
YAH216011230-150≤400350-15007083012490
2YAH216021230-150≤400350-4507083013858
YA24481116-50≤200200-70074818.59834
YAH24481116-50≤400310-13007083011830
2YAH244821130-150≤400310-13007083013012
YA24601146-50≤200260-7807483012240
2YA24602146-50≤200260-7807483013583
YAH246011430-150≤400400-17007083013096
2YAH246021430-150≤400400-17007083014420

型号规格Model筛面尺寸size工作面积Area层数Deck筛孔尺寸Hole           Size给粒 粒度Feed  size处理能力Capacity功率Power质量weight
mm2
mmmmt/hkwkg
YK型圆振动筛 Circular vibrating screen
2YK18371.8×3.756.7523-100≤40037-40518.55645
YK18451.8×4.58.113-100≤40045-486153730
2YK18451.8×4.58.123-100≤40045-486226330
YK18521.8×5.259.4513-100≤40052-56718.54160
2YK18521.8×5.259.4523-100≤40052-567306880
YK20372×3.757.513-100≤40041-450153785
2YK20372×3.757.523-100≤40041-450226420
YK20452×4.5913-100≤40050-54018.54140
2YK20452×4.5923-100≤40050-540307144
YK20522×5.2510.513-100≤40058-63018.54650
2YK20522×5.2510.523-100≤40058-630307990
YK20602.4×61213-100≤40066-72018.55065
2YK20602.4×61223-100≤40066-720308710
YK24372.4×3.75913-100≤40058-63018.54410
2YK24372.4×3.75923-100≤40058-630307590
YK24452.4×4.510.813-100≤40050-648224945
2YK24452.4×4.510.823-100≤40050-648308540
YK24522.4×5.2512.613-100≤40069-756225920
2YK24522.4×5.2512.623-100≤40069-756309397
YK24602.4×614.413-100≤40079-864306625
2YK24602.4×614.423-100≤40079-8643710690
