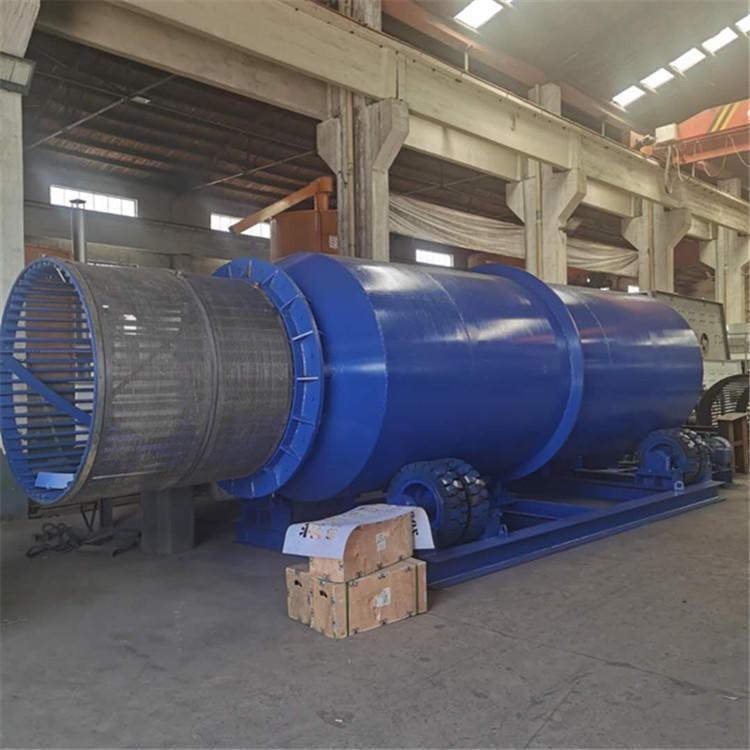

RXT型圆筒洗矿机 Drum sand and gravel washer
娱乐中心国家行业标准 JB/T9036
一、用途简介
RXT型圆筒洗矿机是黑色、有色、冶金、矿山用来清洗矿石的设备.将该设备中加入清水，通过圆筒旋转搅拌,清除原矿中溶于水的泥砂等杂质，而使矿石达到工艺要求。圆筒式洗矿机适用于清洗80mm以下的矿石，以清洗锰矿石为例，设锰矿石含泥量80%，经洗矿机清洗后.含泥量为 15%以下，使矿石达到工艺要求和经济指标。
娱乐中心I. Application
RXT drum sand and gravel washer is a kind of equipment used to wash ores in industries such as ferrous metal, nonferrous metal, metallurgy and mining. The washing process is: Add clear water to such equipment and remove impurities such as mud and sand of the raw core dissolved in water. After such washing process, the ores can meet technological requirements. Drum sand and gravel washers are suitable to wash ores with the size of below 80mm. Take manganese ore for example, if the silt content of manganese ore is 80%, this figure can become smaller than 15% after they are washed by sand and gravel washer so that the ores can meet technological requirements and hit the economic target.
二、主要技术参数
| 型号规格Model | 筒体尺寸 Cylinder | 筛孔尺寸 Mesh size | 转速 Speed | 给矿粒度 Washing size | 耗水量 Water consumption | 产量 Capacity | 功率 Power | 质量 Weight |
| mm | mm | r/min | mm | m3/h | t/h | kw | t | |
| RXT1030 | Φ1000×3000 | ≤20 | 27.9 | ≤80 | 1 | 40 | 15 | 3.8 |
| RXT1136 | Φ1100×3600 | ≤25 | 27.6 | ≤80 | 1.2 | 65 | 15 | 4.6 |
| RXT1230 | Φ1200×3000 | ≤25 | 27.6 | ≤100 | 1.3 | 70 | 22 | 4.7 |
| RXT1430 | Φ1400×3000 | ≤25 | 27.6 | ≤100 | 1.5 | 80 | 22 | 4.9 |
| RXT1545 | Φ1500×4500 | ≤25 | 21 | ≤160 | 1.7 | 120 | 30 | 6.9 |
| RXT2265 | Φ2200×6500 | ≤50 | 19 | ≤230 | 1.8 | 180 | 37 | 15.9 |
