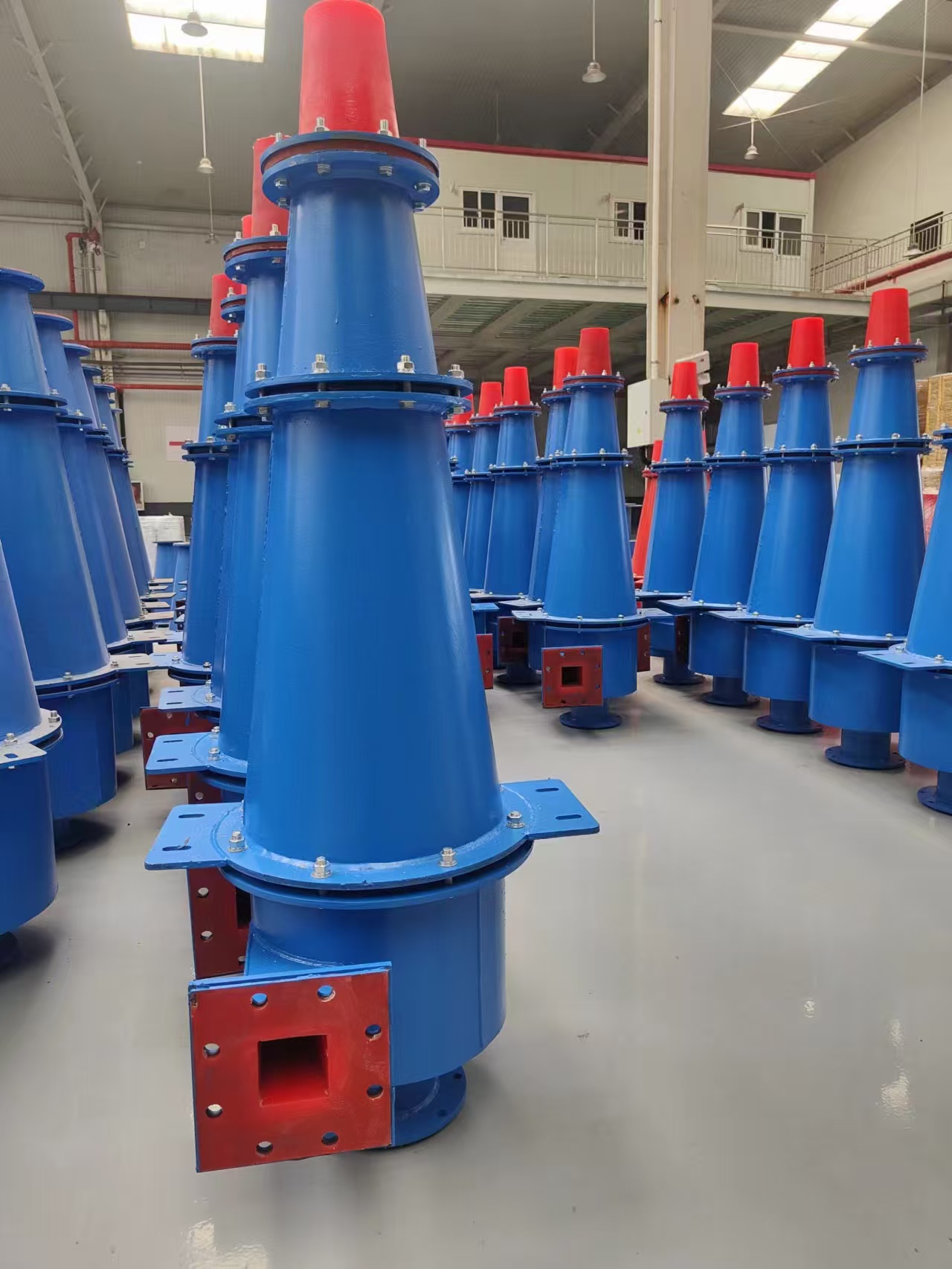

·FX型克莱布斯水力旋流器 Hydrocycolone

娱乐中心FX型克莱布斯水力旋流器 Hydrocycolone

国家行业标准  JB/T 9035

水力旋流器作为一种常见的分离分级设备，其工作原理是离心沉降，当待分离的两相（或三相）混合液以一定压力从给矿口切线方向（或渐开线）进入旋流器后，产生强烈的三维椭圆型强旋转剪切旋流流动。由于粗颗粒（或重相）与细颗粒（或轻相）之间存在粒度差（或密度差），在离心力、向心力、浮力、流体阻力等作用下大部分粗颗粒（或重相）按螺旋轨迹下旋到底部，作为沉砂从沉砂口排出。细颗粒（轻相）在中心形成内螺旋矿流向上运动，作为溢流从溢流管排出。

All of the spinning action, and  the resultant centrifugal force, is caused by the flow through the inlet branch  being tangentical the feed box. Naturally, the higher the inlet pressure the  greater the rotational speed and the greater the centrifugal force, which is  commonly many times that of gravity. Solids are flung to the wall of the  cyclone cone and spiral down to the spigot. The bulk of the liquid spirals  upwards and leaves the cyclone through the vortex finder, the fraction leaving  through the spigot being determined by the spigot to vortex finder  relationship. The only solids to escape with the bulk of the water are the  particles which are so fine that the entrainment or drag forces are not  overcome by the centrifugal forces. Thus, for any given inlet  pressure/rotational speed there is a cut size at which the drag and centrifugal  forces are in balance. Particles finer than this cut size are dragged with the  bulk of the liquid through the vortex finder, and particles coarser than the  cut sixe report to the spigot.

水力旋流器广泛用于工业：非金属矿、高岭土、选矿、石油、化工、洗煤厂、造纸，污水处理等行业用于澄清、浓缩分级、脱砂、脱泥、脱水、分选、分离等。具有高效，节能并将逐步替代螺旋分级机作业。

Application of Hydrocycolone: Hydrocycolone is widely applied in  industries such as nonmetallic mining, kaolin, ore dressing, petroleum,  chemical, coal washing, paper making, sewage treatment for clarification,  concentration and classification, desliming, dewatering, sorting, separation,  etc. It is highly efficient and energy saving. This type of equipment gradually  replaces spiral classifiers.

1、本产品系按中华人民共和国行业标准DZ/T0194-1997《聚氨酯水力旋流器》制造、安装、检测。

1. This kind of product is  manufactured, installed and detected in accordance with The Industrial Standard  of the People's Republic of China DZ/T0194-1997 Polyurethane Hydrocycolone.

2、本产品具有如下结构参数；详见附页。

2. This kind of product has the  following structural parameters. See the attached sheet for details.

3、水力旋流器结构特点：

娱乐中心3. Structural Features of  Hydrocycolone

（1）产品用聚氨酯弹性体材料制作内衬，具有耐磨性强，重量轻，不为酸、碱、盐溶液腐蚀，不易老化，不发生锈蚀等优点。但不应在大于80℃时工作。

(1) The linings of such product  are made of polyurethane elastomer materials. They enjoy advantages such as  strong abrasion resistance, light weight, no corrosion by acid, alkali or salt  solutions, no aging easily, and no rusting. However, they shall not work at  temperature of higher than 80℃.

（2）本产品适用于含固体泥浆（包括低黏度溶液）的颗粒分级、浓缩、脱泥及水质净化作业，可用于选矿厂的闭路磨矿分级，尾砂输送或用于井下充填、筑坝时的尾矿浓缩，非金属矿及化工原料的粉体制备，油田钻井泥浆的除净化，环保废水处理等作业。

(2) This kind of product  applies to size grading, concentration, desliming, and water purification of  mud containing solid (including low-viscosity solution), close circuit of  grinding and tailing transportation at ore dressing plants, tailing  thickening during underground filling and damming, powder preparation of  nonmetallic ores and chemical raw materials, purification of oilfield drilling  mud, wastewater treatment, etc.

娱乐中心（3）聚氨酯由模具浇柱而成，因此内部几何形状尺寸准确，内表面非常光滑。

 (3) Polyurethane is cast by moulds.  Therefore, its internal geometry size is accurate and internal surface is very  smooth.

（4）给料口的形状采用螺旋线进料或渐开线进料，因此进料过程中能获得预分离作用，提高分离效率。

娱乐中心(4) The shape of feed inlet is  spiral line or involute. Therefore, preseparation effects can be achieved  during the material feeding process and separating efficiency can be improved.

娱乐中心（5）合理的流道结构、光滑的内表面，尽可能少的泄露点等，使得水力旋流器净化效果好，安装简单，维修方便。

娱乐中心(5) Reasonable flow passage,  smooth internal surface, fewest possible leakage points, etc enable the  hydrocyclone to produce good clarification effects and be easy for installation  and maintenance.

（6）据工艺流程需要，经计算和试验确定适当的溢流管径和沉砂口径。

(6) According to the needs of process  flow, appropriate diameter of overflow pipe and diameter of spigot are  determined according to calculation and test.
