·CGJ型解吸柱技术参数 Parameter of the disadsorption

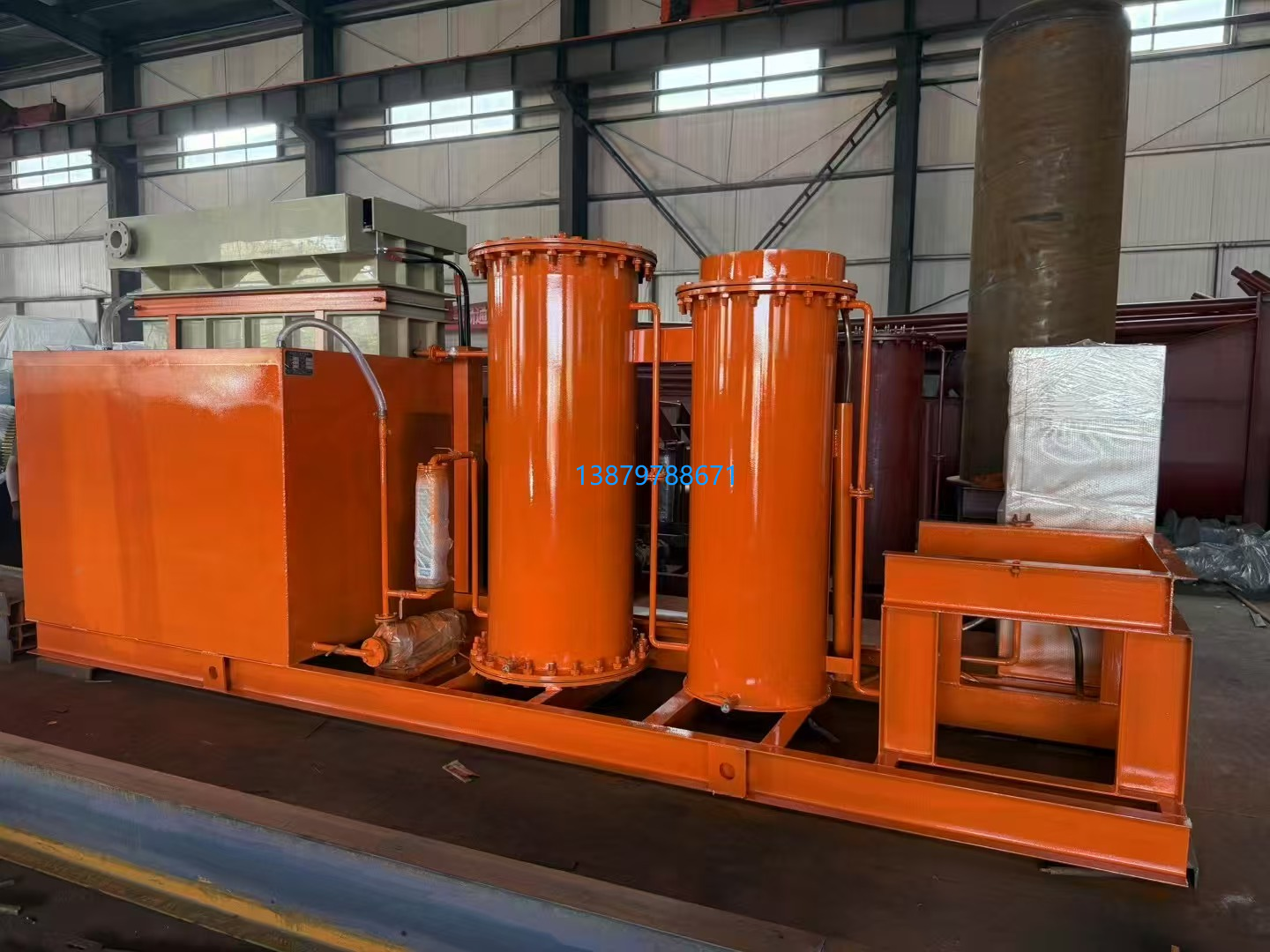

解吸柱

CGJ型解吸柱技术参数 Parameter of the disadsorption column

解吸柱为直立筒式双层压力容器，内胆材料为优质不锈钢，外壳为碳结钢。

Desorption column is a vertical drum-like double-layer pressure vessel with its interior made of high quality stainless steel and its shell of carbon structural steel.

解吸柱上端设有进炭口,排液口,安全阀接口,压力表接口,下端设有排炭口和进液口,进液口也兼有其它用途.接口与管路采用法兰对按方式。

The desorption column is provided with carbon inlet port, vent hole, relief valve connection and pressure gauge connection at the upper part and carbon outlet port and liquid feeding port which has another use at the lower part. The connection and pipeline is connected with push-type flange.

解吸柱下端还设有人孔,特殊情况下可拆开观察内部情况。

At the bottom side of desorption column is a manhole which can be used to dismantle the column in particular cases so as to check the internal situation.

解吸柱出厂带保温，保温钢壳厚重坚固美观耐腐，且可拆卸。外圆焊有四点安装支座。

The desorption column is provided with a solid, robust and good-looking corrosion-resistant steel insulation shell before leaving the factory. . The outer circle is welded with four-point mounting support.

型号规格Model	容积 Capacity	工作压力 Operation pressure	工作温度 Operation temperature	重量 Weight	工作介质Operation medium
型号规格Model	m³	MPa	℃	KG	工作介质Operation medium
CGJΦ300×2000	0.14	0.25	95～98	193	2%NaCN+1%NaOH溶液
CGJΦ450×2500	0.4	0.25	95～98	552	2%NaCN+1%NaOH溶液
CGJΦ500×1400	0.27	0.25	95～98	83	2%NaCN+1%NaOH溶液
CGJΦ500×2500	0.49	0.25	95～98	552	2%NaCN+1%NaOH溶液
CGJΦ500×3000	0.55	0.25	95～98		2%NaCN+1%NaOH溶液
CGJΦ500×3720	0.7	0.25	95～98	534	2%NaCN+1%NaOH溶液
CGJΦ518×3880	0.82	0.5	135	840	2%NaCN+1%NaOH溶液
CGJΦ600×2500	0.71	0.25	95～98		2%NaCN+1%NaOH溶液
CGJΦ600×3000	0.85	0.25	95～98		2%NaCN+1%NaOH溶液
CGJΦ600×4300	1.2	0.25	95～98	879	2%NaCN+1%NaOH溶液
CGJΦ700×2800	1.08	常压	95～98	839	2%NaCN+1%NaOH溶液
CGJΦ700×3000	1.08	常压	95～98	835	2%NaCN+1%NaOH溶液
CGJΦ700×3800	1.585	常压	95～98	920	2%NaCN+1%NaOH溶液
CGJΦ800×4000	2	0.25	95～98	1114	2%NaCN+1%NaOH溶液
CGJΦ900×4200	3	常压	95～98		2%NaCN+1%NaOH溶液
